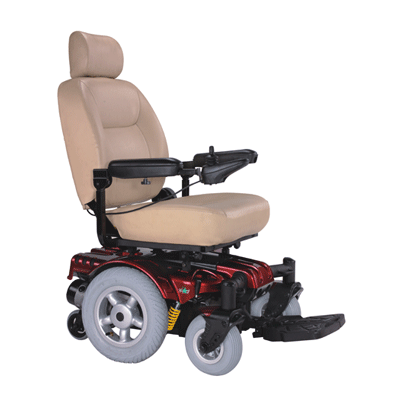

Vital C - P16C
A strong heavy duty power wheelchair with the weight capacity of 225 Kg (500 lbs.) is featured with the seat width options of 22″ / 25” and 4-pole high power motors.
Medicare coded, HCPCS : K0853
| ITEM | SPECIFICATION |
| WEIGHT CAPACITY | 500lbs (225kgs) |
| DRIVE WHEEL | 14″ x 3″ (360mm x 75mm) |
| FRONT CASTER(WHEEL) | 9.5″ x 3″ (240mm x 75mm) |
| REAR CASTER(ANTI-TIPPER) | 5″ x 1″ (130mm x 25mm) |
| MAX SPEED | 6.25MPH (10KPH) |
| BATTERY SPECIFICATIONS | 12V 50Ah 2pcs |
| BATTERY RANGE | up to 20 miles (30km)* |
| CHARGER TYPE | 8 Amp Off -Board Charger |
| CONTROLLER TYPE | VR2 90Amp |
| MOTOR TYPE | 700W 4-Pole Motor x 2pcs |
| LENGTH | 45.3 ” (1150mm) |
| WIDE | 25.9″ (660mm) |
| WEIGHT:W/BATTERY | 257 lbs (117kgs) |
| SUSPENSION | Drive Wheel / Rear Caster |
| TURNING RADIUS | 23.75″ (605mm) |
| HEIGHT | 48.8″ (1240mm) |
| SEAT WIDTH | 22″ (560mm) |
| SEAT HEIGHT | 23.6″ (600mm) |
| SEAT DEPTH | 20″ (508mm) |
| BACK HEIGHT | 28″ (710mm) |
| WHEEL BASE | 14″ (360mm) |
| LEG ROOM | 18″ (460mm) |
* Depending on the use, terrain and driving conditions, the batteries will provide a range of up to 20 miles of travel. However, even if the power chair is not in use, we recommend that the batteries be charged periodically.
