Vita Lite -S17

Vita Lite S17L

Vita Lite S17

  • Liquid crystal display (LCD) instrument console to indicate speed, temperature, distance traveled and battery status
    • Adjustable 10 Speed setting
    • Modern LED lighting system provides bright lights, with less power consumption
    • Fully adjustable comfortable seat with adjustable backrest, headrest and armrests
    • Provides rear & front independent suspension
    • system to enhance the stability
    • L.E.D reverse tail light available





    Features:

    • Equipped programmable S-Drive -140 Amp controller for maximum function and precise driver control
    • Liquid crystal display (LCD) instrument console to indicate speed, temperature, distance traveled and battery status
    • Aluminum alloy wheels, 11″ Front & Rear Flat Free Tires
    • Adjustable tiller
    • Comfortable Contour Captain Seat 18″. (Optional: 20″)
    • Equipped with powerful 700-Watt 4-Pole Motor/Transaxle 20:1 Gear Ratio
    • Modern LED lighting system provides bright lights, with less power consumption
    • Fully adjustable comfortable seat with adjustable backrest, headrest and armrests
    • 300 lbs. (135 kgs) weight capacity

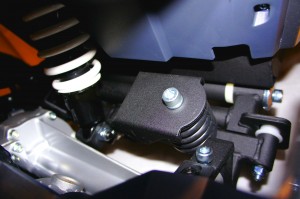

    • Provides Double-A Arms front independent suspension & Rear 3D Suspension (see picture on Right) system to enhance the stability
    • Maximum Speed: 9.5 mph (15 kph) **
    **Spec may vary depending on environment conditions, user’s weight, usage of lights…etc.

    Specification:

    ITEM SPECIFICATION
    WEIGHT CAPACITY 300 lbs. (135 kg)
    DRIVE WHEEL 280mm x 100mm (11″ x 4″)
    FRONT CASTER(WHEEL) 280mm x 90mm (11″ x 3.5″)
    REAR CASTER(ANTI-TIPPER) None
    MAX SPEED 9.5 mph (15 kph)
    BATTERY SPECIFICATIONS 12V 50Ah x 2pcs
    BATTERY RANGE up to 22 miles (35km)*
    CHARGER TYPE 5 Amp Off Board Charger, 120 / 240 V
    CONTROLLER TYPE S-Drive 140 Amp Controller
    MOTOR TYPE 700W 4-Pole Motor
    LENGTH 51.9″ (1320 mm)
    WIDE 26.3″ (670 mm)
    WEIGHT:W/BATTERY 300 lbs. (110 kg)
    SUSPENSION Full Suspension
    Front: Double A-Arm
    Rear: 3D Suspension
    TURNING RADIUS 47″ (1200 mm)
    SEAT HEIGHT 18″ (460mm)
    SEAT WIDTH 18″ (460mm)
    BACK HEIGHT 22″ (560mm)
    WHEEL BASE(LENGTH) 36″ (935mm)
    GROUND CLEARANCE 3″ (76mm)
    LEG ROOM 12.6″ (320mm)

    * Depending on the use, terrain and driving conditions, the batteries will provide a range of up to 22 miles of travel. However, even if the power chair is not in use, we recommend that the batteries be charged periodically.

    PURCHASE OR DOWNLOAD USER MANUAL - S17



    Email [email protected]
    or call 1-866-464-9799 to check availability
