Escape – LX – HP8

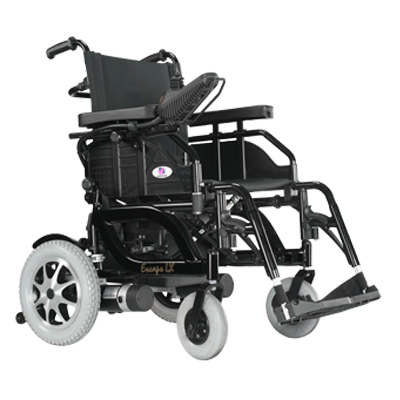

Escape LX HP8

ITEM SPECIFICATION
WEIGHT CAPACITY 300lbs (135kgs)
DRIVE WHEEL 12.5″ x 2.375″ (320mm x 60mm)
FRONT CASTER(WHEEL) 8″ x 2″ (200mm x 50mm)
REAR CASTER(ANTI-TIPPER) 1.375″ x 0.625″ (35mm x17mm)
MAX SPEED 3.8MPH (6KPH)
BATTERY SPECIFICATIONS 12V 36Ah x 2pcs
BATTERY RANGE up to 20miles (30km)*
CHARGER TYPE 5 Amp Off Board
CONTROLLER TYPE VSI 50Amp
MOTOR TYPE 200W x 2pcs
LENGTH 42.5″ (1085mm)
WIDE 25″ (640mm)
WEIGHT:W/BATTERY 145lbs (66kgs)
SUSPENSION None
TURNING RADIUS 34″ (865mm)

* Depending on the use, terrain and driving conditions, the batteries will provide a range of up to 20 miles of travel. However, even if the power chair is not in use, we recommend that the batteries be charged periodically.

PURCHASE OR DOWNLOAD USER MANUAL – HP8
